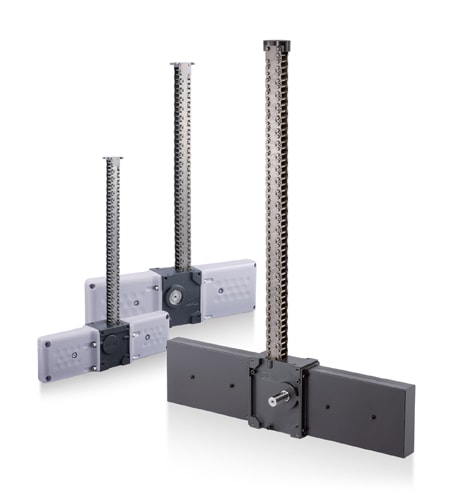

Zip Chain Actuator®

• Pallet Transfer Device






  Pallet Transfer Device

  HSHFC

  Workpieces are raised and lowered for transferring, using an arm powered by the Zip Chain Actuator.


  BENEFIT:





  • Can be installed in the small space on the ceiling side
  • Reduces the cycle time for conveyance by allowing for lifting at high speed
• Container Sorting Equipment






  Container Sorting Equipment

  HSC


  Zip Chain Actuators can be used to move traversers horizontally and to raise or lower chucking units vertically.


  BENEFIT:





  • Horizontal and suspending installation are possible without protruding parts, enabling a lower height layout
  • Accurate multi-point stopping even with horizontal transfers
• AGV (Automated Guided Vehicle)






  AGV (Automated Guided Vehicle)

  HPC


  Workpieces are transferred between conveyors at different heights using the Zip Chain Actuator mounted on AGV.


  BENEFIT:





  • Lift unit can be accommodated compactly in the AGV
  • Height can be adjusted according to the conveyor height of the next process

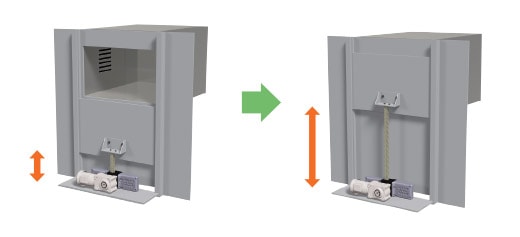

• Furnace Door






  Furnace Door

  HSCE


  Zip Chain Actuators can be used to push up and close furnace doors.


  BENEFIT:





  • Can be installed without protruding from equipment
  • Higher speed operation prevents temperatures inside the furnace from changing

Click the different characteristics and specifications to learn more.

• CHARACTERISTICS (WITHOUT BELLOWS)




  Model		Allowable stroke*1	Allowable thrust*2		Input shaft				Maximum speed		Zip Chain travel distance per input shaft rotation	Approximate mass
  					Allowable torque		Allowable OHL		Thrust direction	Input shaft rotation		Input shaft Standard/reverse shaft	Input shaft Dual shafts	Suspending Installation
  		mm	N	{kgf}	N•m	{kgf•m}	N	{kgf}	mm/sec	(r/min)	mm	kg
  ZCA25N	030	300	400	{40.8}	9.41	{0.96}	638	{65}	1000	630	95.3	1.9	2.0	2.5
  	050	500	300	{33.6}								2.5	2.6	3.1
  ZCA35N	050	500	1000	{102}	34.7	{3.53}	946	{96.4}	1000	420	142.9	5.1	5.5	6.0
  	075	750										6.5	7.0	7.5
  	100	1000	600	{61.2}								7.5	8.0	8.5
  ZCA45N	100	1000	2000	{204}	116.6	{11.9}	2065	{210.5}	500	125	240	21	21	22
  	150	1500										25	25	27
  	200	2000	1200	{122.5}								30	30	31

• CHARACTERISTICS (WITH BELLOWS)

  Model		Allowable stroke*1	Allowable thrust*2		Input shaft				Maximum speed		Zip Chain travel distance per input shaft rotation	Approximate mass
  					Allowable torque		Allowable OHL		Thrust direction	Input shaft rotation		Input shaft Standard/reverse shaft	Input shaft Dual shafts	Suspending Installation
  		mm	N	{kgf}	N•m	{kgf•m}	N	{kgf}	mm/sec	(r/min)	mm	kg
  ZCA25N	030	300	400	{40.8}	9.41	{0.96}	638	{65}	1000	630	95.3	2.5	2.6	3.1
  	050	500	300	{30.6}								3.1	3.2	3.7
  ZCA35N	050	500	1000	{102}	34.7	{3.53}	946	{96.4}	1000	420	142.9	5.5	6.0	6.5
  	075	750										7.0	7.5	8.0
  	100	1000	431	{44}								8.0	8.5	9.0
  ZCA45N	100	1000	2000	{204}	116.6	{11.9}	2065	{210.5}	500	125	240	22	22	23
  	150	1500										27	27	28
  	200	2000	900	{91.8}								32	32	33

• SPECIFICATIONS AND ENVIRONMENTAL REQUIREMENTS





  ZCA main unit		ZCA25N	ZCA35N	ZCA45N

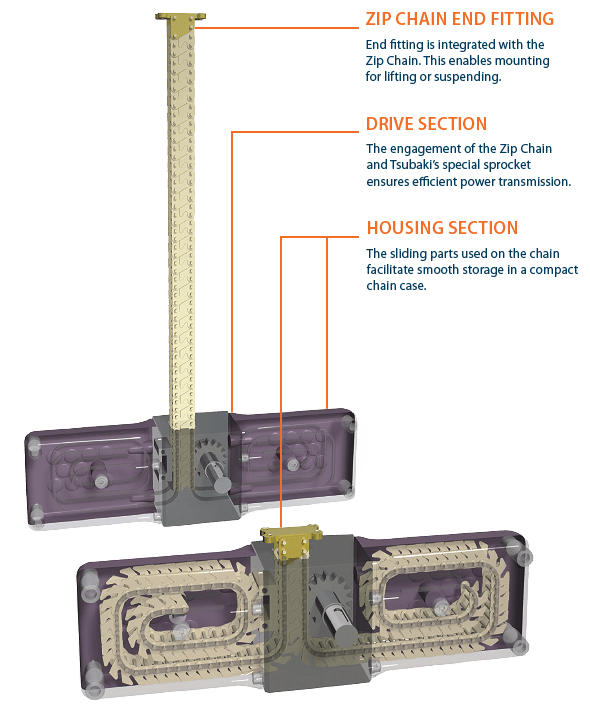

  Drive section	Material	Forged steel
  	Coating Color	Black, Munsell N2.0 equivalent
  Housing section	Material	Polyacetal		Iron
  	Coating Color	Purple grey Munsell 0.8P6.3/3.0 equivalent (molded)		Black, Munsell N2.0 equivalent
  Chain	Material	Iron
  	Lubricant	Shell Alvania EP Grease 2 [Showa Shell Sekiyu K. K.] * This grease is applied before shipment.
  Environmental requirements	Operating temperature	0 to 60°C
  	Relative humidity	85% or less (no condensation)
  	Ambient atmosphere	Typical rain-free indoor environment with dust levels kept at a general factory level.
  	Installation direction	ZCA can be installed with any direction, be sure to mount a linear guide in the direction of travel. A mounting base is required to suspending installation.
