ATRA-FLEX T-Series Couplings

Reduce Cost of Maintenance and Downtime with T-Series Couplings



For reliability and total low cost of ownership, customers turn to ATRA-FLEX flexible couplings. We are proud to provide

high-quality couplings that have been proven to increase efficiency and productivity for industrial applications worldwide since 1980.

How T-Series Works

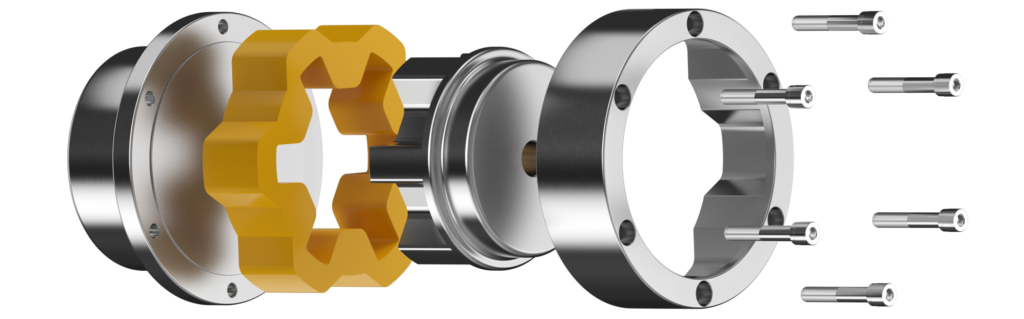

T-Series close coupled couplings consist of four parts. The ring hub, flex hub, insert, and drive ring. The ring hub and flex hub are installed on the shafts with the drive ring fitting over the flex hub. After coupling alignment, the insert is placed around the flex hub engaging the bottom lobes of the insert. The drive ring is then fitted over the insert engaging the top lobes of the insert. The drive ring is then fastened to the ring hub using high strength alloy steel socket head cap screws with high collar lock washers. The coupling will now transmit torque with silent, smooth reliable, maintenance free operation.

REQUEST A QUOTE

T-Series Features

  • Absorbs extreme torsional shock and vibration while accommodating angular, parallel, and axial misalignment without generating reactionary loads, significantly increasing bearing life.
  • Uniquely combines the stability of a compression type coupling with the safety of a shear coupling. In the event of a lockup, the insert will shear, minimizing the possibility of damaging your rotational equipment.
  • Allows up to 15″ shaft diameters and 1,570,000 in-lbs of torque in several configurations including: non-spacer, spacer, floating shaft, flywheel, limited-end float, among others.
  • No lubrication or routine maintenance is required.
  • Reduced spare parts. The rugged polyurethane insert is the only spare part and can be inspected or replaced in minutes without having to move the equipment or the shaft hubs.
  • Withstands a temperature range from -60° to 350° Fahrenheit depending on insert type.
  • Wide range of inserts available to meet most torsional stiffness and torque requirements and offers very high resistance to chemicals and weather.
  • HD inserts available for 30% higher torque without changing any other components.
  • Nitrocarburized process is available for corrosion resistance as a cost-effective alternative to stainless steel.

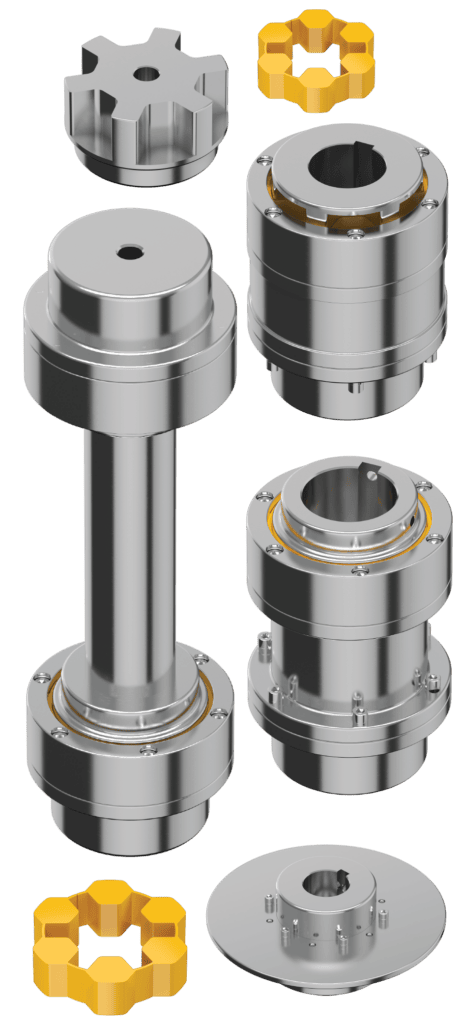

T-Flex Components

T-Series Manufacturing Process



T-Series is manufactured in the USA. Standard hubs and rings are machined from solid carbon steel rounds and tubing, maintaining tight tolerances which provides excellent coupling balance. Stainless steels in grades 303, 304, and 316 are also available for corrosive environments and food applications. We also offer a nitrocarburized option for a low cost, alternative to stainless steel which hardens the exterior steel surfaces giving it a black appearance and prevents wear and corrosion.

T-Series inserts are made from durable custom compounded polyurethane that offer resistance to almost every fluid found in the industry today. Using T-Series ensures dependable, maintenance free torque transmission for your rotational equipment, and comes with product/technical support from our knowledgeable team with over 40 years’ experience.

INSERT YELLOW
T-0 T-1 T-2 T-3 T-4 T-5 T-6 T-7 T-8 T-9 T-10 T-11 T-12
CONTINUOUS (LB-IN) 1,000 1,600 3,800 6,000 12,000 35,000 64,700 120,000 202,000 304,000 540,000 720,000 950,000
INTERMITTENT (LB-IN) 1,800 2,500 7,000 9,600 19,200 60,000 103,600 200,000 269,600 500,000 860,000 1,050,000 1,280,000
INSERT RED
T-0 T-1 T-2 T-3 T-4 T-5 T-6 T-7 T-8 T-9 T-10 T-11 T-12
CONTINUOUS (LB-IN) 850 1,360 3,230 5,100 10,200 29,750 54,995 102,000 171,700 258,400 459,000 612,000 807,500
INTERMITTENT (LB-IN) 1,530 2,125 5,950 8,160 16,320 51,000 88,060 170,000 229,160 425,000 731,000 892,500 1,173,000
INSERT ORANGE
T-0 T-1 T-2 T-3 T-4 T-5 T-6 T-7 T-8 T-9 T-10 T-11 T-12
CONTINUOUS (LB-IN) 1,130 3,000 6,000 9,000 18,600 60,000 106,800 200,000 333,600 452,000 890,000 1,100,000 1,570,000
INTERMITTENT (LB-IN) 2,260 4,000 9,000 12,600 24,000 80,000 170,900 300,000 444,900 603,000 1,400,000 1,650,000 2,280,000
INSERT GREEN
T-0 T-1 T-2 T-3 T-4 T-5 T-6 T-7 T-8 T-9 T-10 T-11 T-12
CONTINUOUS (LB-IN) 413 450 1,598 2,700 5,400 14,438 26,689 54,000 83,408 125,250 202,500 294,000 356,250
INTERMITTENT (LB-IN) 743 900 3,150 4,500 9,000 24,750 42,735 75,000 111,210 206,250 322,500 412,500 517,500
