Why Thermal Imaging?
Unlike many rotating components, a backstop’s internal condition can’t be evaluated through visual inspection alone. One of the best indicators of equipment health is operating temperature.
As internal wear develops or operating conditions change, abnormal heat often appears before obvious symptoms. By comparing operating temperatures to ambient conditions, Tsubaki specialists can identify heat patterns that may indicate developing mechanical or lubrication-related issues requiring further evaluation.
An initial survey establishes a baseline for normal operating temperatures, and periodic follow-up surveys reveal temperature trends over time, allowing potential problems to be detected early while supporting predictive maintenance, improving maintenance planning, and increasing equipment reliability.
What's Included in the Survey
-
Thermal Imaging
Thermal Imaging
Using professional infrared imaging equipment, our specialists capture thermal images of each operating backstop to evaluate temperature distribution and identify unusual heat signatures.
- Temperature map of each surveyed backstop
- Heat signature comparison across all inspected units
- Operating temperature baseline for future inspections
- Identification of units requiring additional evaluation
![Thermal Imaging Survey](https://www.ustsubaki.com/wp-content/uploads/Findings-Card@2x.png")
-

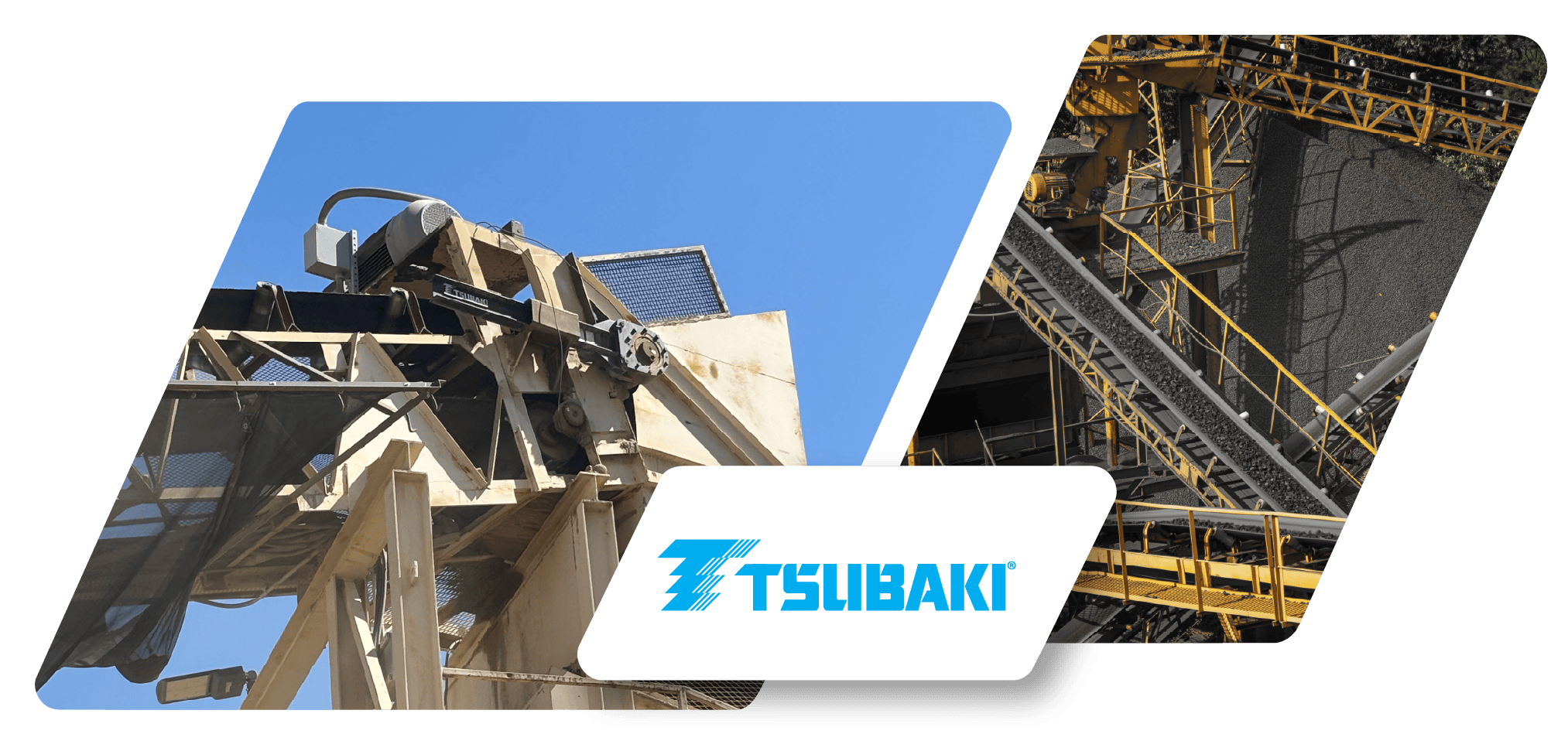

Visual Equipment Inspection
Visual Equipment Inspection
Each surveyed backstop is inspected for oil leakage, damaged seals, corrosion, mounting concerns, alignment issues, and other visible conditions that may affect performance.
- Condition assessment of critical external components
- Documentation of installation and mounting concerns
- Verification of lubrication-related indicators
- Photographic documentation of notable findings
-
Findings & Recommendations
Findings & Recommendations
At the conclusion of the complimentary survey, you'll receive a report documenting thermal images, observed conditions, and recommendations to help prioritize maintenance and support future inspections.
- Prioritized maintenance recommendations
- Actionable observations for maintenance planning
- Comprehensive survey report with thermal imagery
- Baseline records for future condition trending
![Findings & Recommendations](https://www.ustsubaki.com/wp-content/uploads/Thermal-Imaging-Card@2x.png")
Schedule Your Backstop Thermal Imaging Survey
Whether your backstops are newly installed or have been operating for years, a Tsubaki Backstop Thermal Imaging Survey provides the data and expert analysis needed to make informed maintenance decisions, reduce unexpected downtime, and improve equipment reliability.
This complimentary on-site service helps establish a baseline for equipment health, identify potential issues early, and support more effective maintenance planning. After the survey, you’ll receive a detailed report with thermal images, inspection findings, and recommendations from Tsubaki specialists—all at no cost.
