Learn about our NEW Drum Sprocket Configurator

In today’s fast-paced industrial world, precision and efficiency are key. When it comes to choosing the right drum for your application, Tsubaki’s Drum Sprocket Configurator is a game-changer. This NEW innovative tool is the first of its kind in the industry and simplifies the process of finding the perfect drum for your needs.

First, simply put in your technical specifications from style and strands to bore size and number of teeth, and then receive a rendering in just seconds. Then, once you’re happy with your configuration, you can request a quote, download a 2D PDF, or download CAD in a wide range of formats.

To give you a closer look at how our new Drum Sprocket Configurator works, we’ve created a quick how-to video. Whether you’re a seasoned professional or new to the field, our configurator puts the power in your hands.

Product Configurator

Learn about the different designs, constructions, and features of drum sprockets:

With Full-Face Drum Sprockets, there is an increased surface area resulting in lower contact pressure between the sprocket and chain, along with greater wearability, making full face the standard for most applications.

A-Plate Drum Sprockets can handle greater misalignment and provide bulk material pass-through; however, less contact area may result in lower life.

Mounting Methods:

• Finished bore – Slip-Fit & Heat Shrunk
• Split-Taper, Taper-Lock & QD Bushing
• Split to Bolt
• Idler Sprockets (Bearing/Urethane/Bronze/Other)
• Keyless Locking (e.g. Power-Lock)
• Bearing Installation

For Single Drum Sprockets, the Teeth engage with the chain and provide positive traction. The Can is the main structural member of a drum assembly. Optionally, you can supply a drum assembly without teeth to create a Traction Wheel or Idler.

For Double Drum Sprockets, we provide structural rigidity and strength by supplying multiple-strand drums with a Shroud. However, at your request, we can also supply multiple-strand drums without a Shroud.

For Triple Strand and Combination Sprockets & Traction Wheels, we install Support Plates on triple drum assemblies and larger to enhance structural strength.

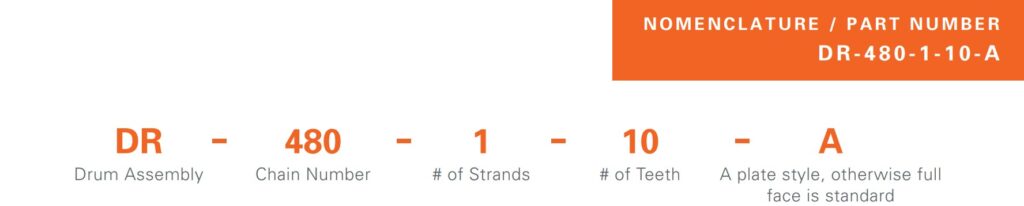

Nomenclature:
